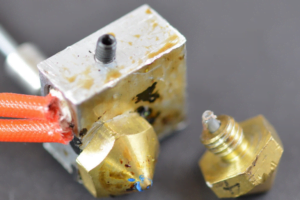

Hotend Jam: Cool Tips to Prevent a Hot Mess!

As a 3D printing enthusiast, you've likely encountered the dreaded hotend jam - that frustrating moment when your printer suddenly grinds to a halt, leaving you scratching your head and wondering what went wrong. Hotend jams can be a real pain, but fear not! In this comprehensive guide, we'll dive deep into the common causes of hotend jams and equip you with the knowledge to prevent and troubleshoot these pesky issues.

Before we delve into the causes of hotend jams, it's essential to understand the basic anatomy of a 3D printer's hotend. The hotend is the heart of your 3D printer, responsible for melting and extruding the filament to create your desired 3D object. It typically consists of several key components, including the heater block, nozzle, heat break, and heat sink. Each of these components plays a crucial role in the smooth operation of your 3D printer, and any issues with one or more of them can lead to a hotend jam. By understanding the function of each component, you'll be better equipped to identify and address the root cause of your hotend jams.

1. Filament Quality and Compatibility : One of the most common causes of hotend jams is the use of low-quality or incompatible filament. Filament that is too brittle, has inconsistent diameter, or contains impurities can easily clog the nozzle, leading to a jam. Always ensure that you're using high-quality filament recommended for your specific 3D printer model.
2. Incorrect Extrusion Settings : Improper extrusion settings, such as an overly high flow rate or extruder pressure, can cause the filament to back up in the hotend, resulting in a jam. Ensure that your extrusion settings are optimized for your specific printer and filament type.
3. Thermal Issues : Problems with the hotend's heating system can also contribute to hotend jams. If the heater block or thermistor is malfunctioning, the hotend may not reach the correct temperature, causing the filament to solidify and clog the nozzle.
4. Mechanical Obstructions : Physical obstructions in the filament path, such as a bent or worn-out PTFE tube, can disrupt the smooth flow of filament and lead to a jam. Regularly inspect and replace any worn or damaged components in your printer's extruder assembly.
5. Cooling Issues : Inadequate cooling of the hotend can cause the filament to prematurely solidify, leading to a jam. Ensure that your printer's cooling system is functioning correctly and that the cooling fan is not obstructed.
6. Retraction Settings : Improper retraction settings, such as too much retraction distance or speed, can cause the filament to be pulled back into the hotend, leading to a jam. Experiment with your retraction settings to find the optimal configuration for your printer and filament.
7. Debris and Contamination : Over time, small debris and contaminants can accumulate in the hotend, causing blockages and jams. Regular cleaning and maintenance of your printer's hotend can help prevent these issues.

I know, it’s a bummer. Sometimes it’s unavoidable, but other times it’s pretty much completely your fault. From watching users across the forums, I would say the number one cause of hotend jams is because of incorrect slicer settings. With a typical PTFE lined hotend, your retraction should be set as so:

• Bowden Extruder - 4-6mm @ 40-60mm/s
• Direct Drive Extruder - 2-3mm 40-60mm/s

Of course, if you’re using an all-metal hotend divide those numbers in half . All-metal hotends also require a slight bump in temperature. The PTFE lining that is found in most hotends acts as a kind of lubricant for the filament when it is being retracted. Since the all-metal hotend lack this PTFE lining, you can quickly cause hotend jams by using TOO MUCH retraction by pulling filament into the cold zone. Refer to the above diagram for questions about cold/hot zones.

No, I’m not talking about your parts cooling fan. I’m referring to the fan that should be running whenever your hotend is heated. If this fan seems to be failing or isn’t running at all, this is a problem. Heat from your heater block will creep up into the cold zone of your hotend and cause jams. You need to make sure that the fan is working, and that this area is cool to the touch.

I’m going to lump in cheap all-metal heat breaks and degraded PTFE liners into this one category. Cheap heat breaks will give you all sorts of fits. I used cheap ones for awhile and would always get random jams. Since I have been running Micro Swiss all-metal heat breaks, I haven’t had a single hotend jam (with properly tuned retraction). PTFE lining will soften at temperatures about 220c and sometimes issues can occur at lower temps. It’s important to stay on top of this because even though it melts at a higher temperature, it can cause problems over time through use. Remember not to print at high temperatures with your PTFE lined hotend!

Also, keep an eye on your idle or cold temperatures. The reading for your hotend and bed thermistor should be pretty close. If you are noticing a pretty big gap when cold, that means it is also off when it’s hot. If that’s the case, you could be running too cold or too hot. Either way can cause jams, so it’s always a good idea to stock a spare thermistor to swap in for testing purposes.

So, you were trying to replace your filament and now.. you can’t force your new color through. More than likely you jammed your hotend in the cold zone. This happens when you are removing the half melted tip of filament too slowly and it literally cools before it leaves the hotend. Next time, speed it up and don’t dilly-dally!

Now that you understand the common causes of hotend jams, let's explore some effective troubleshooting and prevention strategies:

1. Inspect and Clean the Hotend : Regularly inspect your hotend for any signs of wear, damage, or debris buildup. Use a cleaning needle or a small wire brush to carefully remove any accumulated filament or contaminants.
2. Calibrate Extrusion Settings : Ensure that your extrusion settings, such as flow rate, extruder steps, and retraction, are properly calibrated for your specific printer and filament. Use a calibration cube or other test prints to fine-tune these settings.
3. Upgrade to a Hardened Steel Nozzle : If you're experiencing frequent hotend jams, consider upgrading to a hardened steel nozzle. These nozzles are more resistant to wear and can better handle abrasive filaments, such as those containing carbon fiber or metal particles.
4. Monitor Hotend Temperature : Keep a close eye on your hotend's temperature during printing. If the temperature fluctuates or fails to reach the desired level, it could indicate a problem with the heating system that needs to be addressed.
5. Maintain a Clean and Dry Filament Path : Ensure that the filament path, from the spool to the hotend, is free of obstructions and contaminants. Store your filament in a dry, cool environment to prevent moisture absorption, which can lead to jams.
6. Upgrade to a Direct Drive Extruder : If you're using a Bowden-style extruder, consider upgrading to a direct drive extruder. Direct drive extruders have a shorter filament path, which can help reduce the risk of jams and improve overall print quality.
7. Seek Community Support : Don't hesitate to reach out to the 3D printing community for advice and troubleshooting tips. Many online forums and communities are filled with experienced users who can provide valuable insights and solutions to your hotend jam issues.

Remember, the key to preventing and troubleshooting hotend jams is a combination of understanding the underlying causes, implementing the right preventive measures, and being proactive in maintaining your 3D printer. With the knowledge and strategies outlined in this guide, you'll be well on your way to a jam-free 3D printing experience.

There’s a couple ways to remove a hotend jam. I don’t recommend using special drill bits or anything like that to fit into the ACTUAL nozzle hole. Those tend to just snap, and now you have filament AND a broken bit clogging your hotend. Let’s not make this harder than it has to be. The first is the most complicated, but most thorough. I will just high light the general steps. Depending on the type of hotend that you own, it may come apart slightly different.

There are a few things that can cause what looks to be a partial clog.

• One is your PTFE tube if you are a bowden drive system. Make sure that the tube is cut straight and inserted FULLY down into the hotend.
• Another thing to do is check out some of the common extruder problems  that can look like a clog. A dirty drive gear can give you headaches!

If filament will still push out of the nozzle, you may be able to do an atomic pull to clean the jam out. Yes folks, this is the procedure that you’ve read about in ALL the groups. I’ll be honest, I don’t know who coined it as the atomic pull . Regardless of it’s name, it works.

So, you tore your hotend all apart and you want to reassemble it. There’s a right way and a wrong way to do it. When doing this the wrong way, you may not even notice any problems for awhile. Not until you see something dripping down your heater block or from around your nozzle. Make sure that the mating surfaces of the nozzle and the heat break are nice and clean . After that, follow the below instructions for a leak free life:

1. Thread the nozzle into the heater block, but leave it so it has around 1mm of space before the face of the nozzle is tight on the block.
2. Next, thread the heat break into the heat block so it is TIGHT against the nozzle
3. Then, thread this assembly into your heat sink
4. After that, attach the thermistor and heater cartridge, be careful with the wiring.
5. Heat the hotend up to 150C and let it set for a bit.
6. Then, retighten the nozzle while holding the hotend assembly to keep it from spinning. DO NOT SKIP THIS!

7. Enjoy leak free printing!

Whew! That’s a lot. Hopefully you have everything figured out now to live your 3D printing life free from hotend jams! There’s a lot of information in here, so go back and read it through a few times before performing any of these.
